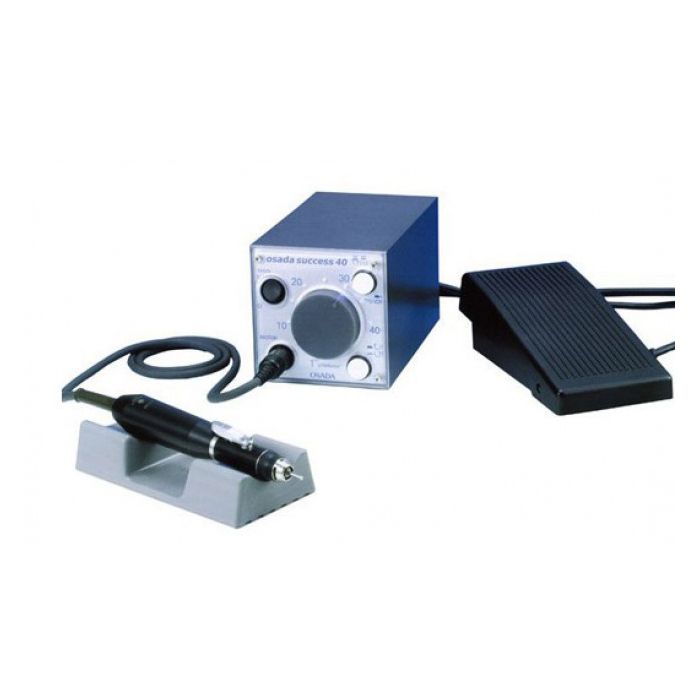

Osada Success 40 Micromotor

OSADA SUCCESS 40 MICROMOTOR The Osada Success 40 Micromotor is a best seller in Germany and is now available in the UK, exclusively from Sutton Tools. It has an exceptional range of features which mark it out as class leading: Exceedingly quiet, smooth and beautifully balanced handpiece with brushless motor and quick release lever for 2.35mm shanks. Revolutionary speed dial: Speeds range from 1,000 to 40,000 rpm with 4.8N.cm of torque with feedback circuitry ensuring smooth delivery of power, particularly at low speed. Forward/reverse switch can change the rotational direction from forwards to reverse and vice versa. Manual/Foot pedal to revolve and stop the Micromotor. The foot pedal is a linear control i.e. the speed is directly proportional to the amount of travel. Constant/variable mode. In constant mode you set the speed, press the foot pedal to start the motor and again to stop it. In variable mode you set the maximum speed on the dial and then no matter how far you press the foot pedal it will not exceed the maximum set. The blue light on the dial shows the maximum speed and flashes to indicate the direction of rotation has been reversed.

Osada Success 40 Model OS-40

• Control Unit dimensions:
• Width: 100mm
• Depth: 185mm
• Height: 105mm
• Weight 2.9kg

• Handpiece:
• Length: 137mm
• Shank Diameter 2.35mm
• Lever Type
• 1000-20,000 rpm
• Torque: 4.8 N.cm
• Weight: 175g

• Length of Motor Cord: 1800mm

• Foot Pedal:
• Width: 100mm
• Depth: 165mm
• Height: 65mm
• Cord Length: 2000mm
• Weight: 530g

• Instruction Manual supplied

• Benefits of Micromotors: The Micromotor cable is very light and flexible which allows for movement. Micromotors are quiet and allow for higher speeds. Their vibrations are minimal making them very comfortable to use.

 This item will have to be sent via UK Mail Hazardous Materials & Liquids Only
